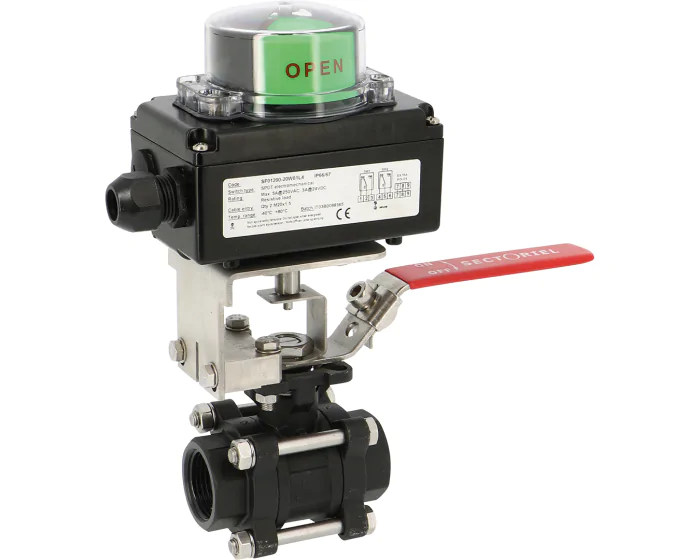

Full bore valve. Designed with carbon steel body, stainless steel ball and PTFE/stainless steel seats. Double seal PTFE-graphite body and stem. Steam service PS: 15 bar. TS: +200°C. IP67 SF limit switch box. TS : -20°C / +80°.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Shaft/stem matérial | Stainless steel 316 |
| Switch type | dry SPDT |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 75.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Gasket | PTFE |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| PS (bar) | 15 |
| Connections | BSP FF |
| Seats | PTFE-Glass |
| TS max (°C) | 200 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Carbon steel A216 WCB (1.0619) 3-piece body DN15 - 1/2'' | 2712020462012 | S1008074 |
€401.31
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) 3-piece body DN20 - 3/4'' | 2712030462012 | S1008075 |
€410.76
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) 3-piece body DN25 - 1'' | 2712040462012 | S1008076 |
€449.99
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) 3-piece body DN32 - 1''1/4 | 2712050462012 | S1008077 |
€481.89
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) 3-piece body DN40 - 1''1/2 | 2712060462012 | S1008078 |
€500.43
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) 3-piece body DN50 - 2'' | 2712070462012 | S1008079 |
€565.26
(excl. btw)
|
add to cart |
